Product Details

+
  • png(1)(11).png

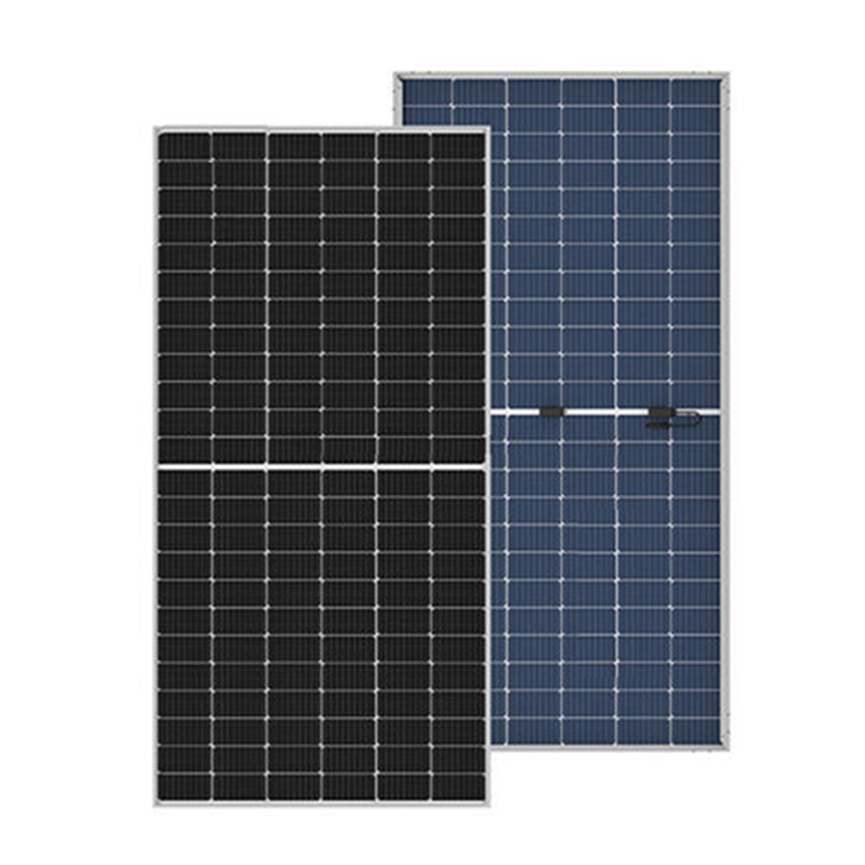

SYX144 (535W-550W)

Classification:

Photovoltaic module

Double Glazed Single Crystal / 10 Grids / 144 Halves
Product Message

11

11

 11

Super anti-PID performance

All-around references to anti-PID materials.
Minimize the chance of attenuation caused by PID phenomenon.

Less than 0.45% linear decay per year

30-year linear power warranty

11

 11

Superior Reliability Capability

Reduced due to moisture, salt spray,
acid and alkali, etc., excellent fire prevention and anti-corrosion properties

Highly efficient PREC technology

+GaAs monocrystalline silicon wafers ensure module power generation capacity



Comprehensive system and product certification

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

单位：mm

Superior Power Guarantee

30-year linear power output guarantee

12-year material and workmanship warranty, component power attenuation of no more than 2% in the first year, subsequent annual power attenuation of no more than 0.45%, the end of the 30-year warranty period component power of no less than 84.95% of the nominal power;



*The above power tests were performed under standard test conditions
11



Electrical performance parameters under standard test conditions

Maximum output power (W) 0-+5W Maximum operating voltage (V) Maximum operating current (A) Open Circuit Voltage (V)±3% Short-circuit current (A)±3% Conversion efficiency Maximum system voltage Maximum Fuse Rating

540

41.03

13.17

49.47

13.64

20.90%

1500V

30A

545

 41.16

13.25

49.61

13.72

21.10%

1500V

30A

550

41.29

13.33

49.72

13.81

21.29%

1500V

30A



Backside Gain

Backside gain 5%(W)

 Backside gain 15%(W) Backside gain 25% (W)

567

621

675

572

627

681

578

633

688



 Operating parameters

Operating temperature range:

-40℃～+85℃

Nominal operating temperature:

45±2 ℃

Short circuit current temperature coefficient:

0.051%/℃

Open circuit voltage temperature coefficient:

-0.273%/℃

Maximum output power temperature coefficient:

-0.348%/℃
Back rate:

70%±5%





Mechanical parameters

Component Size:

2278×1134×30mm

Component weight:

31.5 kg±3%

Snow load/wind load:

5400/2400 Pa
Number of cells:

144pcs

Glass thickness:

double-glass  2.0mm

Junction Box:

 IP68, 3 diodes

Line length:

 Positive 250mm / Negative 300mm (including connector)

Connectors:

HTC-16, IP68

Warranty Program

12 years of technical process, material quality assurance



30-year linear power output guarantee




Packaging Information

Number of components per pallet.

36 pcs

Number of components per 40-foot tall cabinet:

720 pcs

540W Monocrystalline Module I-V Curve

11 11

Standard test conditions:

11 Irradiance 1000W/㎡

11  Temperature 25°C

11  AM=1.5


Nominal Operating Temperature:   11 Irradiance 800W/㎡       11  Temperature 20°C  11  Wind speed 1m/s

The Company reserves the right of final interpretation.
