Product Details

+
  • png(1)(10).png

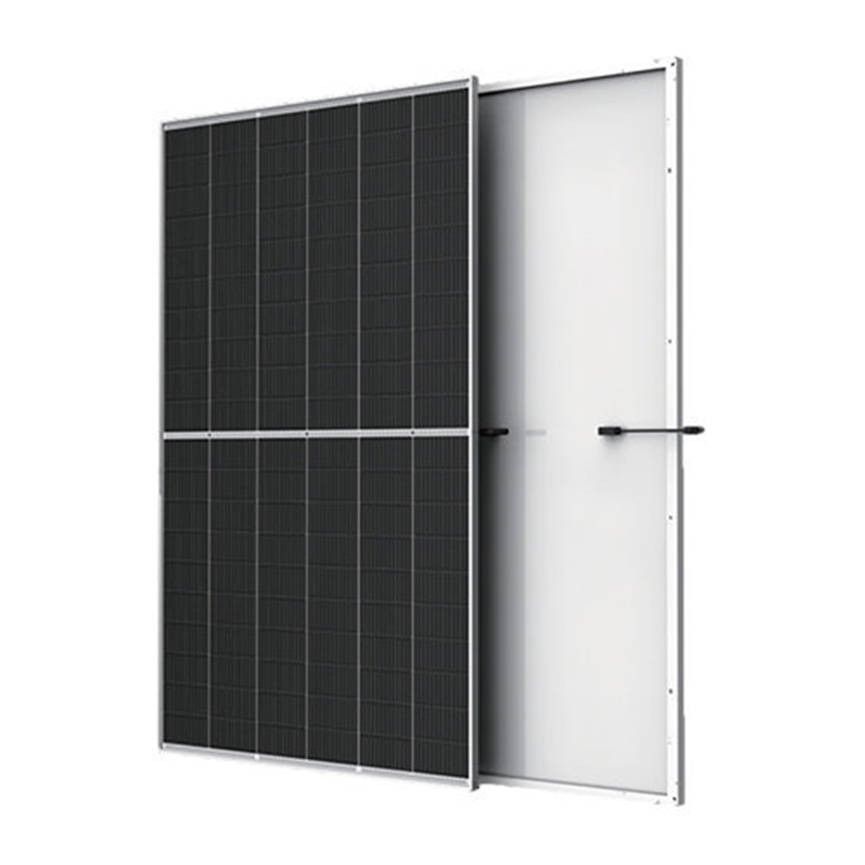

SYX120-XXX(580W-600W)

Classification:

Photovoltaic module

Monocrystalline / 12 Gates / 132 Halves
Product Message

12345

 11 12345

MBB multi-barrier technology

multi-master grid technology

Low operating current

Increased module power and generating capacity at high irradiation levels
12345

12345

Passed IEC 5400/2400Pa

Mechanical Load Verification

Designed to resist shadow blocking

Enhancement of power generation capacity
12345

12345

Fluorine on both sides of the back panel

Resistant to UV irradiation

Anti-LID, PID

Better salt spray and ammonia capability



Comprehensive system and product certification

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

Superior Power Guarantee

25 Year Linear Power Output Guarantee

Monocrystalline module power attenuation of not more than 2% in the first year, subsequent annual power attenuation of not more than 0.55%, the end of the 25-year warranty period module power is not less than 84.8% of the nominal power;
*The above power tests were performed under standard test conditions
11



Electrical performance parameters under standard test conditions

Maximum output power (W) 0-+5W Maximum operating voltage (V) Maximum operating current (A) Open Circuit Voltage (V)±3% Short-circuit current (A)±3% Conversion efficiency Maximum system voltage Maximum Fuse Rating
580 33.62 17.25 40.72 18.28 20.49%

1500V

 30A
585 33.82 17.30 40.92 18.36 20.67%

1500V

 30A
590 34.03 17.34 41.13 18.41 20.85%

1500V

 30A
595 34.22 17.39 41.32 18.46 21.02%

1500V

 30A
600 34.43 17.43 41.52 18.51 21.20%

1500V

 30A



 Temperature parameters

Operating temperature range:

-40℃～+85℃
Nominal operating temperature:

45±2 ℃

Short circuit current temperature coefficient:

 0.047%/℃

Open circuit voltage temperature coefficient:

 -0.269%/℃

Maximum output power temperature coefficient:

 -0.350%/℃





机械参数

Component Size:

 2172×1303×35mm

Component weight:

 31 kg±3%

Snow load/wind load:

5400/2400 Pa

Number of cells:

 120pcs

Glass thickness:

  3.2mm

Junction Box:

 IP68, 3 diodes
Line length: Positive 250mm / Negative 300mm (including connector)

Connectors：

HTC-16, IP68

Warranty Program

12 years of technical process, material quality assurance



25 Year Linear Power Output Guarantee




Packaging Information

Number of components per pallet.

31 pcs

Number of components per 40-foot tall cabinet:

527 pcs



595W Monocrystalline Module I-V Curve

11

Standard test conditions.

11 Irradiance 1000W/㎡

11  Temperature 25°C

11  AM=1.5


Nominal Operating Temperature.   11 Irradiance 800W/㎡       11  Temperature 20°C  11  Wind speed 1m/s

The Company reserves the right of final interpretation.
