Product Details

+
  • png(1)(9).png

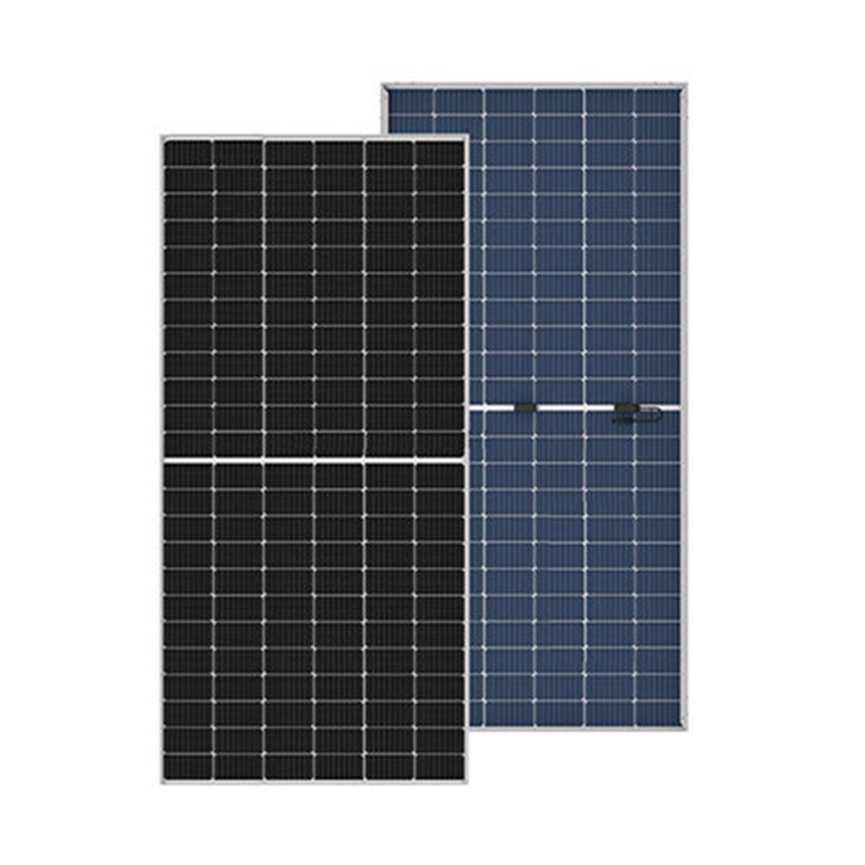

SYX144-XXX(555W-575W)

Classification:

Photovoltaic module

Product Message

11

 11 11

MBB multi-barrier technology

Higher module power

double-sided power generation

Significant increase in power generation gain
11

11
2x 100% EL tests

Lower power attenuation touch

Enabling higher power generation yields
11

11

N-Type Double Glazing

Reduces PID effects to a much lower level

 Double-glazed construction for better weather resistance



Comprehensive system and product certification

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

Superior Power Guarantee

30-year linear power output guarantee

12-year material and workmanship warranty, component power attenuation of no more than 1.0% in the first year, subsequent annual power attenuation of no more than 0.4%, the end of the 30-year warranty period component power of no less than 87.4% of the nominal power;

*The above power tests were performed under standard test conditions.
11



Electrical performance parameters under standard test conditions

Maximum output power (W) 0-+5W Maximum operating voltage (V) Maximum operating current (A) Open Circuit Voltage (V)±3% Short-circuit current (A)±3% Conversion efficiency Maximum system voltage Maximum Fuse Rating
555 42.2 13.16 50.4 13.93 21.48%

1500V

30A
560 42.4 13.21 50.6 13.99 21.68%

1500V

30A
565 42.6 13.27 50.8 14.05 21.87%

1500V

30A

570

42.8

13.32

51.0

14.11

22.07%

1500V

30A

575

43.0

13.38

51.2

14.17

22.26%

1500V

30A



Backside Gain

Backside gain 5%(W)

 Backside gain 15%(W) Backside gain 25% (W)

577

622

666

582

627

672

588

633

678

593

638

684

598

644

690



 Operating parameters

Operating temperature range:

-40℃～+85℃
Nominal operating temperature:

45±2 ℃

Short circuit current temperature coefficient:

  0.046%/℃

Open circuit voltage temperature coefficient:

 -0.260%/℃

Maximum output power temperature coefficient:

 -0.310%/℃

Back rate:

 80%±5%





Mechanical parameters

Component Size:

2278×1134×30mm

Component weight:

31.5 kg±3%
Snow load/wind load:

5400/2400 Pa
Number of cells:

144pcs

Glass thickness:

 Double Glass 2.0mm

Junction Box:

 IP68, 3 diodes

Line length:

 Positive 250mm / Negative 300mm (including connector)

Connectors:

HTC-16, IP68

Warranty Program

12 years of technical process, material quality assurance



30-year linear power output guarantee




Packaging Information

Number of components per pallet:

36 pcs

Number of components per 40-foot tall cabinet:

720 pcs

570W Monocrystalline Module I-V Curve

11 11
Standard test conditions.

11 Irradiance 1000W/㎡

11  Temperature 25°C

11  AM=1.5


Nominal Operating Temperature.   11 Irradiance 800W/㎡       11  Temperature 20°C  11  Wind speed 1m/s

The Company reserves the right of final interpretation.
