Product Details

+
  • png(1)(8).png

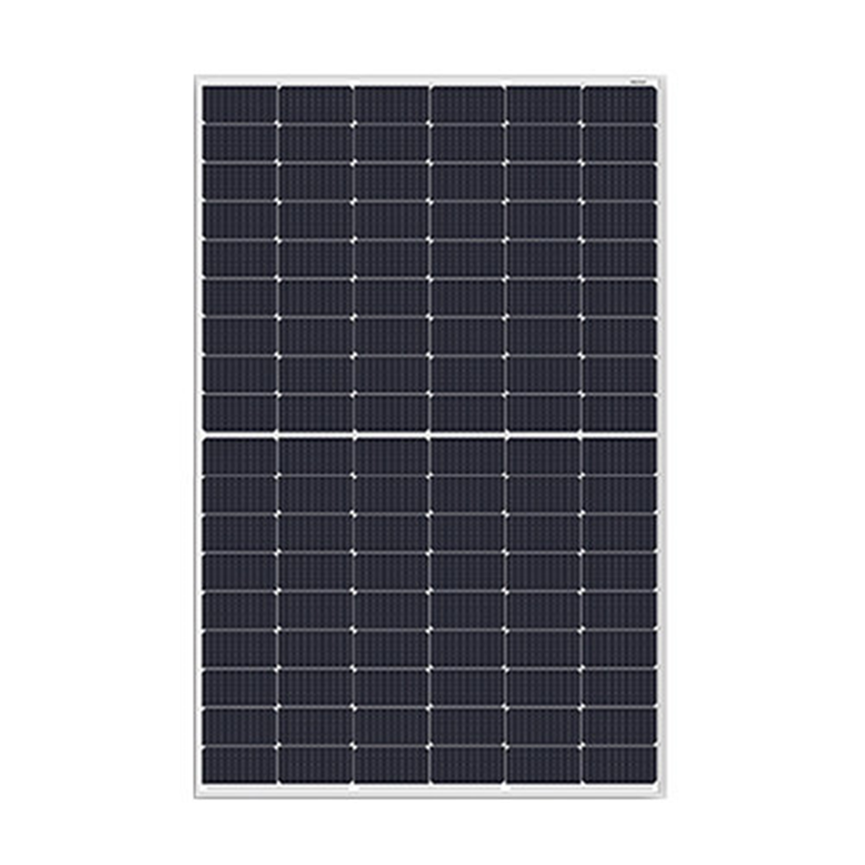

SYX108(390W-415W)

Classification:

Photovoltaic module

Product Message

11

 1 低工作电流

MBB Grid Line

multi-master grid technology

Low operating current

Increased module power and generating capacity at high irradiation levels
背板双面含氟

抗阴影遮挡设计

Fluorine on both sides of the back panel

Resistant to UV irradiation

Designed to resist shadow blocking

Enhancement of power generation capacity
组件首年衰减

抗LID、PID
Module attenuation ≤2% in the first year

Anti-LID, PID

Better salt spray and ammonia capability



Comprehensive system and product certification

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

Superior Power Guarantee

25-year linear power output guarantee

Monocrystalline module power attenuation of not more than 2% in the first year, subsequent annual power attenuation of not more than 0.55%, the end of the 25-year warranty period module power is not less than 84.8% of the nominal power;

*The above power tests were performed under standard test conditions
11



Electrical performance parameters under standard test conditions


Maximum output power (W) 0-+5W Maximum operating voltage (V) Maximum operating current (A) Open Circuit Voltage (V)±3% Short-circuit current (A)±3% Conversion efficiency Maximum system voltage Maximum Fuse Rating
390 30.24 12.91 36.55 13.36 19.97%

1500V

25A
395 30.37 13.01 36.74 13.43 20.23%

1500V

25A
400 30.56 13.10 36.87 13.55 20.48%

1500V

25A
405 30.73 13.19 37.07 13.64 20.74%

1500V

25A

410

30.90

13.27

37.22

13.74

21.00%

1500V

25A

415

31.07

13.36

37.38

13.84

21.25%

1500V

25A



 Temperature parameters

Operating temperature range:

-40℃～+85℃
Nominal operating temperature:

45±2 ℃
Short circuit current temperature coefficient:  0.048%/℃

Open circuit voltage temperature coefficient:

 -0.252%/℃
Maximum output power temperature coefficient:  -0.332%/℃





Mechanical parameters

Component Size:

 1722×1134×30mm

Component weight:

 21 kg±3%
Snow load/wind load:

5400/2400 Pa

Number of cells:

 108pcs
Glass thickness:

3.2mm
Junction Box.

IP68, 3 个二极管
Line length:

正极250mm/负极300mm（含连接器）
Connectors:

HTC-16, IP68

Warranty Program

12 years of technical process, material quality assurance



25-year linear power output guarantee




Packaging Information

Number of components per pallet:

36 pcs

Number of components per 40-foot tall cabinet:

936 pcs



410W 单晶组件I-V曲线

11 11
Standard test conditions:

11 Irradiance 1000W/㎡

11  Temperature 25°C

11  AM=1.5


Nominal Operating Temperature:   11 Irradiance 800W/㎡       11  Temperature 20°C  11  Wind speed 1m/s

The Company reserves the right of final interpretation.
